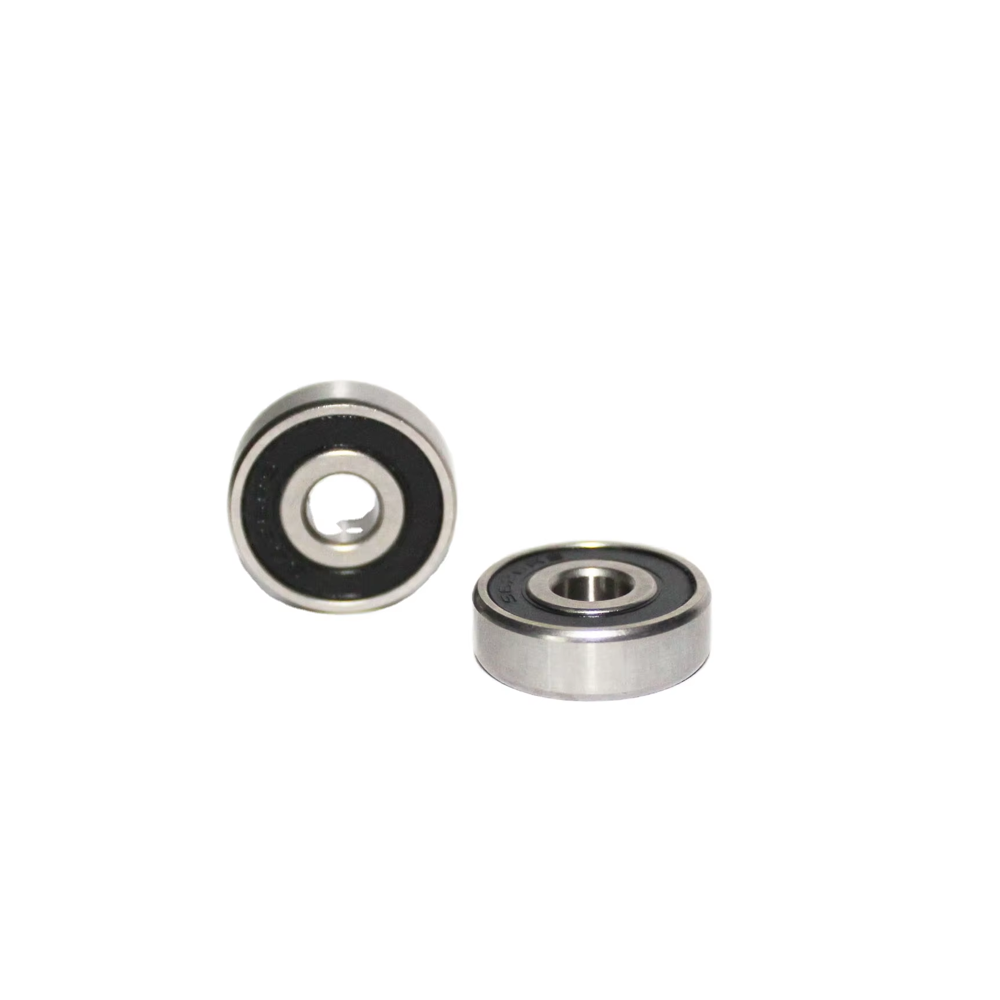

Deep Groove Ball Bearing 6800 Series

Name: Deep Groove Ball Bearing 6800 Series
Brand: CIXI HOTO METALLIC PRODUCT CO.,LTD
Price: nan USD
Availability: InStock

Price nan USD ($)/ Piece

Get a Price/Quote

MOQ : 1000 Pieces

Deep Groove Ball Bearing 6800 Series Specification

Precision Rating
P0, P6, P5

Retainer
Steel / Nylon

Structure
Deep Groove

Cage Material
Steel / Nylon

Inner Diameter
10 mm - 50 mm

Lubrication Type
Grease / Oil

Thickness
4 mm - 12 mm

Seals Type
Open, 2RS (Rubber Sealed), ZZ (Metal Shielded)

Outer Diameter
19 mm - 62 mm

Load Capacity
Standard/Custom (As per model)

Number Of Rows
Single Row

Material
Chrome Steel (GCr15)

Use
furniture

Bearing Type
Ball Bearing

Bore Size
10 mm - 50 mm

Standard
ISO, DIN, GB

Noise Level
Low

Operating Temperature
-20C to 120C

Corrosion Resistance
Anti-corrosive coating available

Maximum Speed
22000 rpm (open), 15000 rpm (sealed)

Customization
Available on request

Application Specificity
High-speed and low noise applications

Dynamic Load Rating (Cr)
3.45 kN - 29.5 kN (varies by model)

Static Load Rating (Cor)
1.32 kN - 19.4 kN (varies by model)

Deep Groove Ball Bearing 6800 Series Trade Information

Minimum Order Quantity
1000 Pieces

FOB Port
Ningbo or Shanghai port

Delivery Time
3 Days

Sample Policy
Within a certain price range free samples are available

Packaging Details
Tube packaging or small single color box

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
We have certificates of ISO9001-2008, ISO 14001-2004, OHSAS 18001-2007.

Deep Groove Ball Bearing 6800 Series About

Deep Groove Ball Bearing 6800 Series is a heavy duty component which can be used in various household to industrial machineries. It is an open type of single row raceway and single shielded bearing. It is capable to resist high vibrations and uneven forces that are generated during the high speed rotary motors. Deep Groove Ball Bearing 6800 Series is available in width of 5 to 7 millimetre. The fabrication material is provided with powdered metallic coating which make it to work efficiently in dry and wet areas without any risk of chemical attacks. It is available in bore diameter in between the range of 10 to 50 millimetre.

Technical Specification

Basic bearing no	Bore D		Outer diameter D		Width W open / Shielded sealed				Radius r min		Basic load rating KN		Ball complement		Max runout speed		Weight Kg
Basic bearing no	(mm)	Inch	mm	inch	mm	inch	mm	inch	mm	Inch	Dynamic C	Static C	No.	Size	Grease r/min	Oil r/mn	Weight Kg
6800	10	.3937	19	.7480	5	.1969	5	.1969	0.3	0.12	1.40	0.75	9	2.381	26000	34000	0.01
6800W7	10	.3937	19	.7480	7	.2756	7	.2756	0.3	0.12	1.40	0.75	9	2.381	26000	34000	0.006
6801	12	.4724	21	.8268	5	.1969	5	.1969	0.3	0.12	1.40	0.90	12	2.381	22000	30000	0.007
6802	15	.5906	24	.9499	5	.1969	5	.1969	0.3	0.12	1.92	1.18	14	2.381	20000	280000	0.01
6803	17	.6693	26	1.0236	5	.1969	5	.1969	0.3	0.12	2.18	1.28	15	2.381	19000	260000	0.019
6804	20	.7874	32	1.2598	7	.2756	7	.2756	0.3	0.12	3.45	2.25	14	3.175	17000	200000	0.042
6805	25	.9843	37	1.4567	7	.2756	7	.2756	0.3	0.12	3.70	2.65	15	3.5	15000	19000	0.048
6806	30	1.1811	42	1.6535	7	.2756	7	.2756	0.3	0.12	4.70	3.65	19	3.175	13000	17000	0.026
6807	35	1.3780	47	1.8504	7	.2756	7	.2756	0.3	0.12	4.90	4.05	22	3.175	11000	15000	0.029
6808	40	1.5748	52	2.0472	7	.2756	7	.2756	0.3	0.12	5.10	4.40	24	3.175	9000	13000	0.033
6809	45	1.7717	58	2.2835	7	.2756	7	.2756	0.3	0.12	6.40	5.65	27	3.175	7000	11000	0.040
6810	50	1.9685	65	2.5591	7	.2756	7	.2756	0.3	0.12	6.60	6.10	24	3.969	5000	9000	0.052

High-Speed and Silent Operation

Deep Groove Ball Bearing 6800 Series is engineered for high-speed settings, with a maximum of 22,000 rpm (open) and 15,000 rpm (sealed), making it suitable for demanding environments where silence and efficiency are paramount. Its low noise level ensures an optimal solution for sensitive equipment and furniture.

Versatile Structural Design

Available in various sizes and seal types (Open, 2RS, ZZ), this series addresses diverse application needs, ranging from furniture manufacturing to specialized machinery. The robust chrome steel construction and the option for anti-corrosive coatings add to its flexibility and durability under different environmental conditions.

Precision and Customization

Tailored to meet a range of precision ratings (P0, P6, P5), and customizable for load, material, and cage choices (steel/nylon), the 6800 Series allows users to select bearings that perfectly fit their operational requirements, enhancing both longevity and performance.

FAQ's of Deep Groove Ball Bearing 6800 Series:

Q: How should I select the right Deep Groove Ball Bearing 6800 Series model for my application?

A: To choose the appropriate model, consider your required load ratings, speed, temperature range, and size constraints. Review the inner/outer diameter, thickness, and the operating conditions your application demands. For specialized needs, you can request custom features such as coatings or precision ratings.

Q: What is the typical process for ordering a customized 6800 Series bearing?

A: Contact the manufacturer or supplier with your specific requirements regarding size, sealing type, cage material, lubrication preference, and any anti-corrosive features. The company will assess your needs, provide technical guidance, and follow up with a quotation and delivery timeline.

Q: When is it preferable to use a sealed or shielded (2RS/ZZ) bearing rather than an open one?

A: Sealed (2RS) and shielded (ZZ) bearings are ideal for environments where dust, moisture, or contaminants are present, preventing ingress and extending bearing lifespan. Open bearings are suitable for cleaner conditions and applications requiring maximum speed.

Q: Where can Deep Groove Ball Bearing 6800 Series bearings be applied?

A: This bearing series is extensively used in furniture, electric motors, automation equipment, and other high-speed, low-noise applications where durability and reliability are crucial. Their versatility also allows for use in various industrial assemblies.

Q: What lubrication types are available, and how do they affect performance?

A: You can choose between grease or oil lubrication, depending on the speed and temperature requirements. Grease offers longer maintenance intervals for sealed bearings, while oil can provide better cooling and minimize resistance in high-speed, open bearings.

Q: How does the anti-corrosive coating benefit the bearing's performance?

A: The anti-corrosive coating protects the bearing from rust and environmental degradation, extending service life-particularly in moist or chemically aggressive conditions, ensuring reliable performance and reduced downtime.
